Chocolate Storage Tanks - Advanced Solutions for Chocolate Processing
Provide You with Chocolate Storage Tank Solutions
Our Chocolate Storage Tanks ensure precision and reliability, maintaining the quality of fine-milled chocolate paste. With over 35 years of expertise, we deliver tailored solutions for your chocolate production success.
Trustworthy China Chocolate Machinery Manufacturer
With over 35 years of expertise, SHANGHAI YUCHO INDUSTRIAL CO., LTD is a trusted leader in chocolate machinery manufacturing. Our Chocolate Storage Tanks are crafted with food-grade stainless steel and advanced technology, ensuring precision, hygiene, and efficiency. Certified to ISO 9001 and CE, we provide customized solutions and end-to-end services, from design to overseas installation and commissioning, ensuring seamless production for clients in over 100 countries.
Product Details
Efficient Storage of Chocolate with Advanced Features
Chocolate Storage Tanks are essential for maintaining the quality of fine-milled chocolate paste during production. These tanks are equipped with adjustable temperature controls and advanced agitation systems to ensure consistent degassing, deodorization, dehydration, and prevention of oil separation.
Numerous Chocolate Storage Tanks from SHANGHAI YUCHO INDUSTRIAL CO., LTD are in operation worldwide, serving food manufacturers with reliable and precise solutions. Crafted with food-grade stainless steel, these tanks ensure hygiene and durability. The integration of advanced heating and mixing technologies guarantees optimal chocolate storage and processing results. A wide range of models and capacities is available to meet diverse production needs, supported by end-to-end services, including overseas installation and commissioning.
Area of Applications
This chocolate storage tank is widely used in chocolate production lines to store and hold fine-milled chocolate mass. It is commonly used after refining and conching processes to maintain temperature, ensure uniform texture, and prevent oil separation. Suitable for small, medium, and large chocolate factories, as well as food R&D centers and artisanal chocolate workshops that require stable storage and preparation of chocolate paste.
Models & Key Specifications
| Model | Diameter | Material | Mixer | Power Speed (r/m) | Heating Power |
|---|---|---|---|---|---|
| YC50L | 736*780 | SSS304 | 0.25KW | 14 | 3KW |
| YC100L | 560*1250 | SSS304 | 1.1KW | 14 | 3KW |
| YC150L | 660*1330 | SSS304 | 1.1KW | 14 | 6KW |
| YC300L | 760*1620 | SSS304 | 1.5KW | 14 | 6KW |
| YC500L | 1000*1650 | SSS304 | 1.5KW | 14 | 6KW |
| YC1000L | 1200*1800 | SSS304 | 2.2KW | 14 | 9KW |
| YC2000L | 1500*2100 | SSS304 | 3KW | 14 | 12KW |
| YC5000L | 2000*2500 | SSS304 | 5.5KW | 14 | 27KW |
Features and Benefits
Precise Temperature Control
Equipped with an adjustable temperature system, this tank ensures consistent heating for fine-milled chocolate paste. It preserves the paste's texture and prevents oil and grease separation, making it ideal for long-term storage.
Continuous Agitation System
The stable 14r/m mixer gently stirs the chocolate paste uniformly, effectively completing degassing, deodorization, and dehydration. This system prevents ingredient stratification, ensuring consistent quality.
Food-Grade SUS304 Construction
All contact parts are crafted from premium SUS304 stainless steel, offering excellent hygiene, corrosion resistance, and full compliance with international food safety standards.
Leakproof & Durable Design
Incorporating advanced foreign sealing technology, the tank delivers exceptional leakproof performance, ensuring safe and stable operation during extended chocolate paste storage and transmission.
Multiple Capacity Options
Available in 8 models ranging from 50L to 5000L, these tanks cater to diverse needs—from small artisanal workshops to medium-sized confectionery plants and large-scale industrial chocolate production lines.
Efficient & Low Maintenance
Designed for smooth transmission and reliable performance, the tank minimizes maintenance requirements, reducing downtime and operational costs while enhancing production efficiency.
How it works
Core Functions of a Chocolate Storage Tank
What is a Chocolate Storage Tank?
A chocolate storage tank is specialized industrial equipment designed to store, heat, and agitate liquid chocolate and cocoa-based products. Unlike standard liquid storage vessels, a chocolate storage tank features a water-jacketed heating system and a continuous internal agitator. This unique configuration offers several key advantages, making it essential for commercial and industrial confectionery production.
The tank’s design enables efficient thermal regulation, continuous mixing, and homogenization of liquid chocolate. As the internal agitator rotates, it creates a sweeping action that prevents material buildup on the tank walls, ensuring consistent temperature distribution. This is especially important for viscous chocolate, which must be held at a precise temperature to avoid premature solidification.
The Significance of Chocolate Storage Tanks in Chocolate Production
In chocolate processing, the storage tank is critical for maintaining consistent viscosity and preventing the separation of cocoa solids and fats. The continuous gentle agitation helps keep the chocolate mass uniform and ensures thorough dispersion of emulsifiers such as lecithin. The result is a homogeneous liquid that can be pumped directly to tempering machines, molding lines, or enrobers for products including chocolate bars, truffles, and coated biscuits.
One of the most important applications is in the post-conching phase. After refining and conching, chocolate is often stored in large volumes before tempering. Chocolate storage tanks are engineered to handle this sensitive material, providing precise temperature control and gentle mixing to ensure consistent batch-to-batch quality.
Key Elements of a Chocolate Storage Tank
A chocolate storage tank relies on several core components that ensure stable performance and reliable operation.

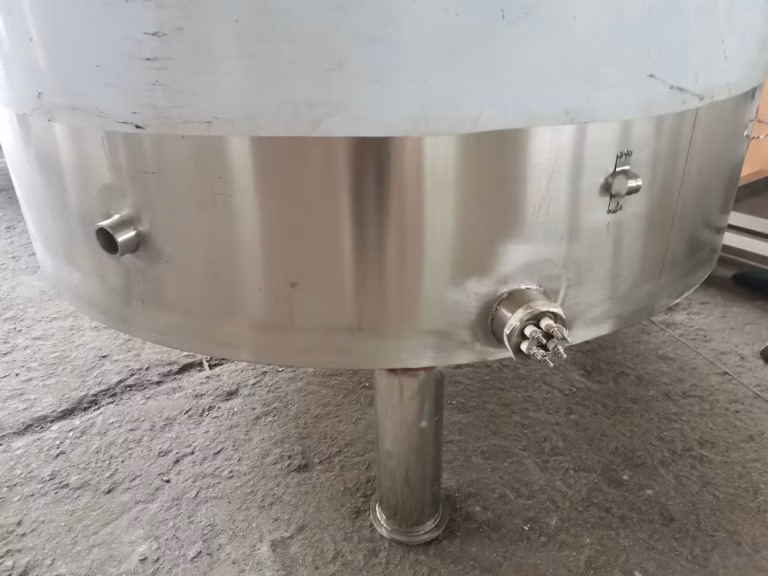

1. The Water-Jacketed Shell
The tank features a double-wall design that creates a jacketed space for heated water circulation. This provides indirect, uniform heating to avoid localized burning or scorching. Water temperature is precisely controlled by electric heating elements and thermostatic sensors.

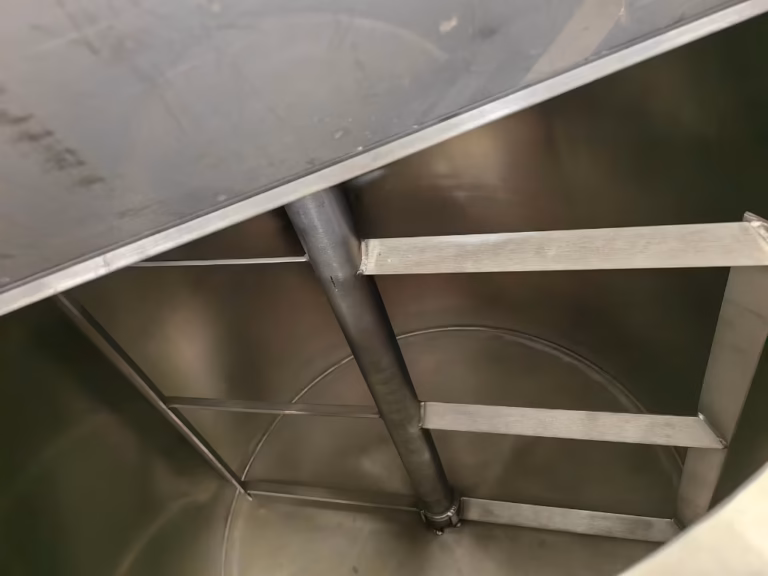

2. Agitation System
Inside the tank, a heavy-duty agitator provides slow, continuous stirring. Most systems use a gate-style stirrer with Teflon or food-grade plastic scrapers along the edges. These scrapers continuously wipe the inner tank surface, preventing chocolate from sticking, caking, or crystallizing on the walls.

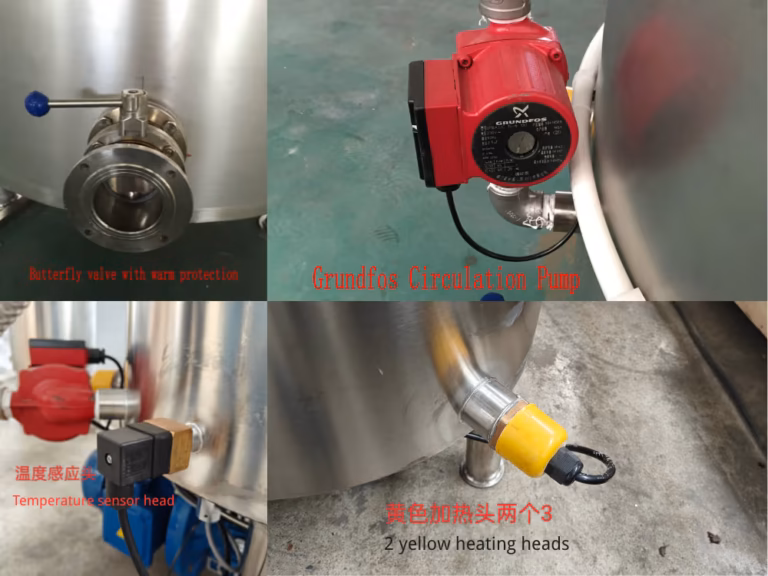

3. Temperature Control Unit
The temperature control system acts as the brain of the tank. It monitors both the jacket water and the chocolate itself, automatically adjusting heating to maintain the set temperature — typically between 40°C and 50°C, depending on the chocolate type.
4. Stainless Steel Construction
Chocolate storage tanks are built from high-grade stainless steel, most commonly 304 or 316L. This ensures hygienic processing, corrosion resistance, and easy cleaning, meeting strict international food safety standards.

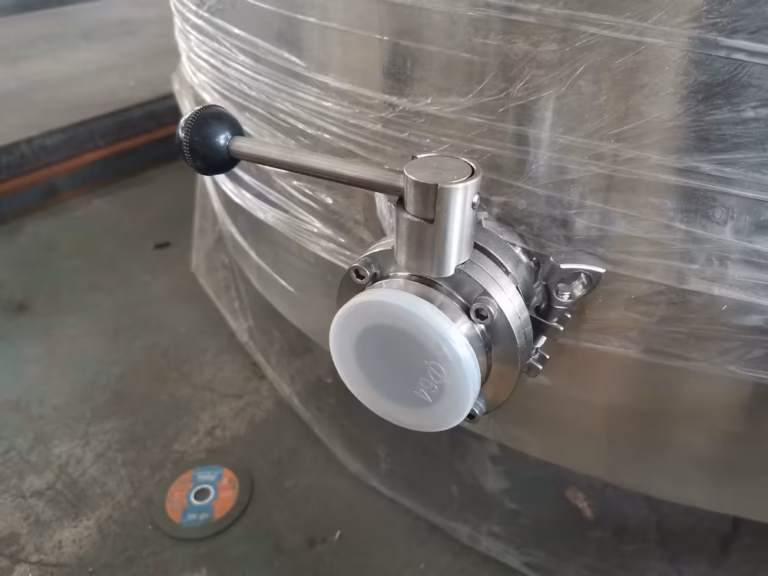

5. Feeding and Discharge Ports
The tank includes dedicated inlet and outlet valves. The top feed port accepts liquid chocolate from the conche, while the discharge port — usually at the lowest point of a conical or sloped bottom — enables complete drainage when transferring chocolate to tempering equipment.
6. Motor and Gearbox
A heavy-duty motor and gearbox assembly drives the agitator, typically mounted at the top or bottom. Given the high viscosity of chocolate, the system delivers high torque at low speeds to move the mass effectively without excessive shear or air entrainment.
7. Degassing and Deodorization Vents
Advanced models include venting systems to release trapped moisture and volatile acids during storage. This improves flavor clarity, texture, and the overall rheology of the final chocolate product.
How Does a Chocolate Storage Tank Work?
The operating principle of a chocolate storage tank centers on simultaneous thermal control and gentle agitation within a fully enclosed, hygienic environment.
1. Material Feeding
Freshly conched liquid chocolate is pumped into the tank through the top inlet, minimizing temperature fluctuations during transfer.
2. Thermal Regulation
The water-jacketed heating system maintains even, gentle heating. The control unit monitors chocolate temperature and adjusts water circulation to hold a stable setpoint, usually around 45°C.
3. Continuous Agitation
The motor drives the gate agitator at low RPM, moving the entire chocolate mass to prevent cocoa solids from settling and cocoa butter from separating.
4. Surface Scraping
Scraper blades continuously wipe the inner tank walls. This prevents stagnant chocolate from overheating and continually blends the heated boundary layer back into the main mass for uniform temperature.
5. Degassing
Slow agitation releases trapped air and residual moisture, which escape through the vent system. This degassing action improves smoothness, gloss, and snap in the finished product.
6. Discharge and Quality Consistency
When required, the bottom discharge valve opens, and the conditioned chocolate is pumped through heated lines to tempering or forming equipment. Consistent agitation ensures the final product remains uniform from the first to the last drop.
Advantages of Chocolate Storage Tanks
- Superior Temperature Control: Water-jacketed heating eliminates hot spots, preventing burning, blooming, or premature crystallization.
- Continuous Homogenization: Gentle mixing prevents fat separation and particle settling, maintaining ideal flow properties.
- Scalable Capacity: Available from 50L to over 10,000L to suit small artisanal lines and large industrial production.
- Improved Product Quality: Low-shear agitation and degassing enhance chocolate gloss, texture, and flavor profile.
- Hygienic & Easy to Clean: Food-grade stainless steel and self-wiping scrapers simplify sanitation and product changeovers.
- Energy Efficient: Insulated jacket design reduces heat loss and lowers long-term operating costs.
- Automation Ready: Modern tanks integrate with PLC systems for seamless communication with conches, pumps, and tempering units.
- Minimal Waste: Conical bottom and full-scraping design ensure near-complete discharge, reducing costly product loss.
Our Certifications
We hold international authoritative certifications to ensure our equipment meets global market access standards and production quality requirements.
Every piece of equipment undergoes strict inspection throughout production, from material selection to assembly and finished machine testing, ensuring stable performance and long service life.
Our experienced engineering team also provides professional on-site guidance, process optimization and targeted technical support for your bean-to-bar production line, helping you achieve efficient and reliable operation.
Customization & Comprehensive After-Sales Service
Customization Service
We offer one-to-one customized design for your bean-to-bar production line:
1. Adjust equipment capacity and dimensions based on your workshop layout;
2. Optimize production process to match your product (chocolate mass, cocoa butter, cocoa powder);
3. Customize auxiliary equipment and line integration for seamless production;
Global After-Sales Support
We have a dedicated after-sales team with 5 professional after-sales engineers and 15 foreign trade specialists, providing comprehensive after-sales service for global customers:
1. Overseas on-site installation and commissioning;
2. Professional operation and maintenance training for your staff;
3. Timely supply of spare parts and technical consultation;
4. Long-term after-sales follow-up and production optimization guidance;
Related Products
TTJ40 Chocolate Tempering Machine
SJB Series Chocolate Delivery Pump
RYG Series Fat Melter
TYJ Chocolate Enrobing Machine with Cooling Tunnel
FAQs
Q1. What temperature should a chocolate storage tank maintain?
A chocolate storage tank should maintain a temperature between 40°C and 50°C (104°F to 122°F), depending on the type of chocolate. This range ensures the chocolate remains fluid without overheating, which could affect its quality and flavor.
Q2. How long can chocolate stay in a storage tank?
Chocolate can stay in a storage tank for several hours to a few days, provided the tank maintains consistent temperature and agitation. Proper conditions prevent issues like oil separation, crystallization, or flavor degradation.
Q3. Can one tank hold dark, milk, and white chocolate?
Yes, a single tank can hold dark, milk, or white chocolate, but thorough cleaning of all contact parts (including agitators, scrapers, and ports) is required between batches to avoid cross-contamination of flavors and colors. For simultaneous storage, separate tanks are recommended.
Q4. What size chocolate storage tank is suitable for small-scale factories?
A small factory typically requires a tank with a capacity of 100kg to 500kg, depending on production volume. Compact tanks are ideal for artisanal or small-scale operations, offering flexibility and efficiency.
Q5. Do chocolate storage tanks temper chocolate?
No, chocolate storage tanks are not designed for tempering. They maintain the chocolate’s fluidity and quality but do not create the specific crystalline structure required for tempered chocolate. A separate tempering machine is needed for this process.
Q6. What is the difference between a melting tank and a storage tank?
A melting tank is designed to melt solid chocolate or cocoa butter, often at higher temperatures, while a storage tank maintains melted chocolate at a consistent temperature and texture for extended periods. Storage tanks also include agitation systems to prevent oil separation and ensure uniformity.
Q7. How often should a chocolate storage tank be cleaned?
Chocolate storage tanks should be cleaned after each production cycle or when switching between different types of chocolate. Regular cleaning prevents residue buildup, contamination, and flavor mixing, ensuring food safety and product quality.
Q8. Are water-jacketed tanks better than electric-heated tanks?
Water-jacketed tanks are generally preferred for chocolate storage as they provide more uniform and gentle heating, reducing the risk of localized overheating. Electric-heated tanks can be effective but may require more precise control to avoid hot spots.
Q9. Can a chocolate storage tank handle compound coatings?
Yes, chocolate storage tanks can handle compound coatings as well as real chocolate. However, compound coatings typically require lower temperatures, so the tank’s temperature settings should be adjusted accordingly.
Q10. What materials are best for food-safe chocolate tanks?
Food-grade stainless steel is the best material for chocolate storage tanks. It is durable, hygienic, corrosion-resistant, and easy to clean, ensuring compliance with food safety standards and maintaining the quality of the chocolate.
