Cereal Bar Production Line | Automatic Granola & Protein Bar Machine
Provide You with Cereal Bar Production Line Solutions
Our Cereal Bar Production Line is designed to produce a variety of nutritious snacks, including cereal bars, peanut brittle, protein bars, rice candy, Shaqima, crispy egg cakes, and more. With over 20 years of expertise, Yucho Group delivers tailored solutions to ensure your confectionery success.
Trustworthy China Cereal Bar Machine Manufacturer
With more than 20 years of experience, Yucho Group is a trusted leader in cereal bar production machinery. Our Cereal Bar Making Machine ensures precision, hygiene, and efficiency, crafted with food-grade stainless steel and advanced automation. Certified to ISO 9001 and CE, we provide customized solutions and end-to-end services, from design to support, ensuring seamless production for clients worldwide.
Product Details
Cereal Bar Production Lines are designed to produce healthy and nutritious snacks with precision and efficiency. These machines can craft a wide range of products, including cereal bars, peanut brittle, protein bars, rice candy, Shaqima, and more. The production process is divided into five key stages: feeding, compressing, cooling, cutting, and final cooling on a conveyor.
Numerous cereal bar production lines from Yucho Group operate worldwide, delivering consistent quality and high output. Advanced automation ensures ingredients are mixed, shaped, and cut with precision, while adjustable cutting sizes enable customization. The insulated containers and cooling systems maintain the product’s structure and texture throughout the process. Additionally, the use of food-grade stainless steel and ISO9001/CE-certified components guarantees hygiene and durability, making these machines a reliable choice for modern snack production.
Technical Parameters
Peanut candy/Cereal Bar Making Machine
| Item | YC-8001-RGW |
|---|---|
| Candy Bar Range | 1 layer of soft cereal bars |
| Production Capacity | 50-100 cuts/min |
| Candy Length Adjustable | 30-200mm |
| Total Power | 10kW |
| Compressed Air | 0.2MPa |
| Weight | 2000KG |
| Dimensions (mm) | 15000×1800×2000 |
Area of Applications
This cereal bar production line is widely used for manufacturing various healthy, grain-based snack bars, including:
- Cereal Bars (Grain & Oat-Based Snack Bars)
- Granola Bars (Fruit & Nut Mixed Cereal Bars)
- Peanut Cereal Bars (Peanut & Grain Energy Bars)
- Muesli Bars (Whole Grain & Seed Snack Bars)
- Fruit & Nut Cereal Bars (Dried Fruit & Nut Enriched Bars)
- Healthy Energy Bars (Low-Sugar Sports Nutrition Bars)
- Breakfast Cereal Bars (On-the-Go Breakfast Bars)
- Multi-Grain Snack Bars (Mixed Whole Grain Bars)

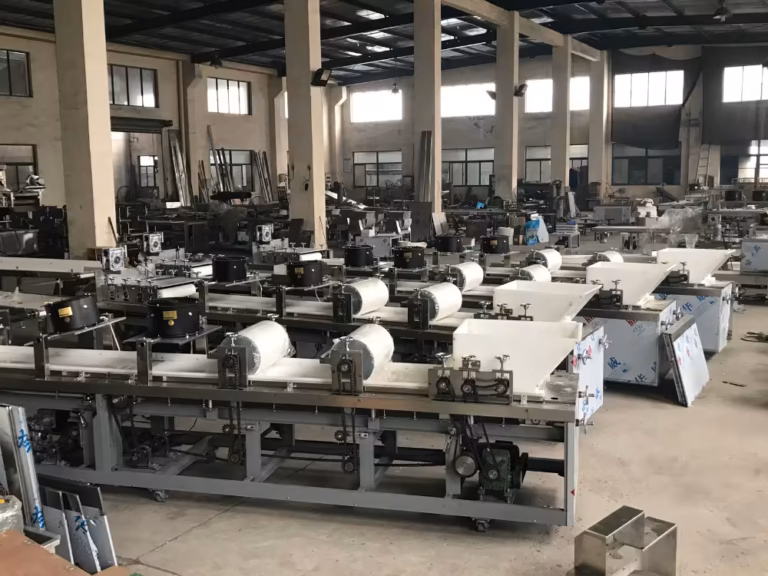

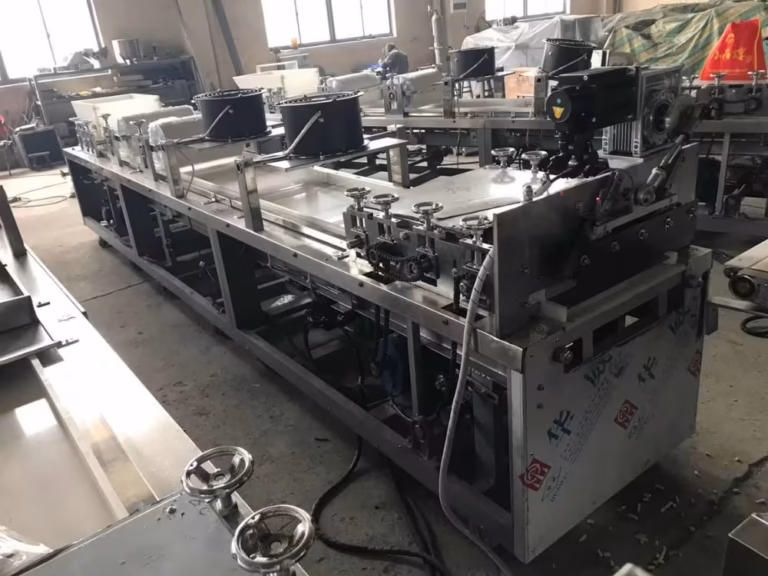

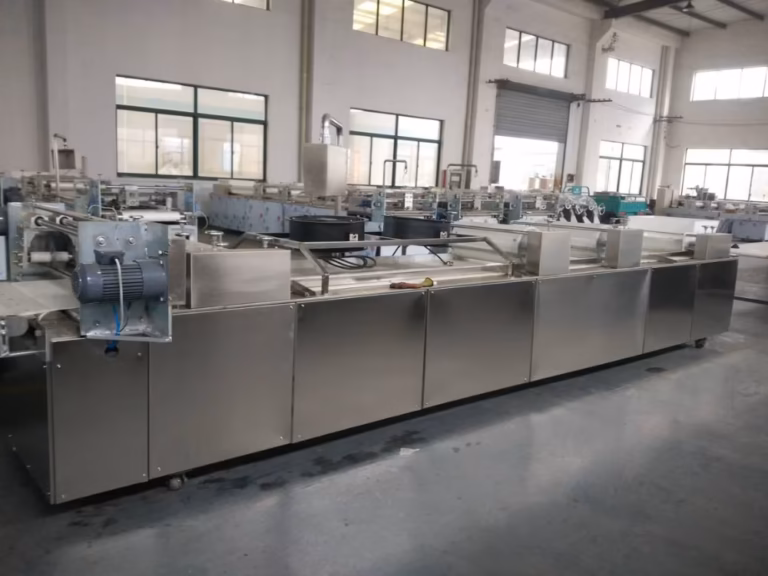

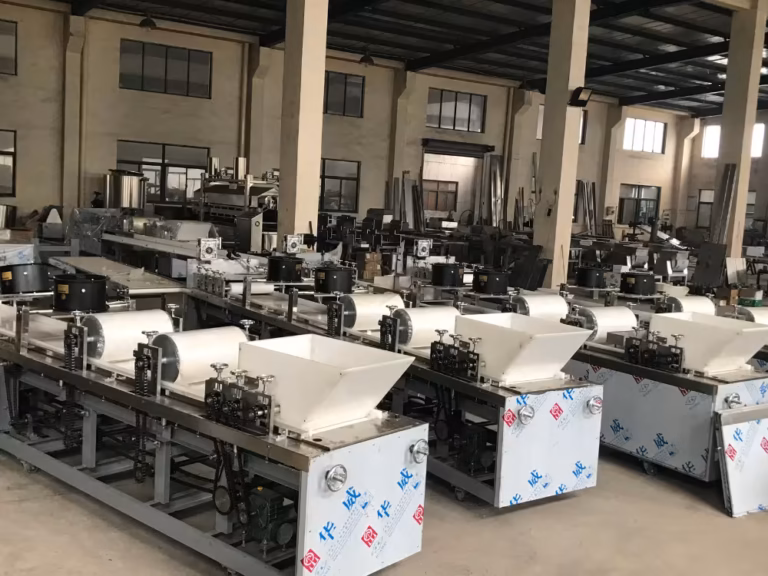

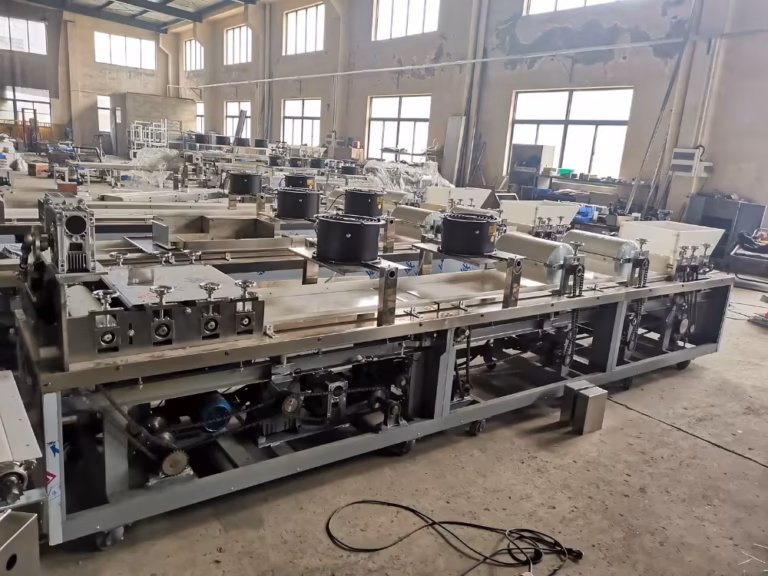

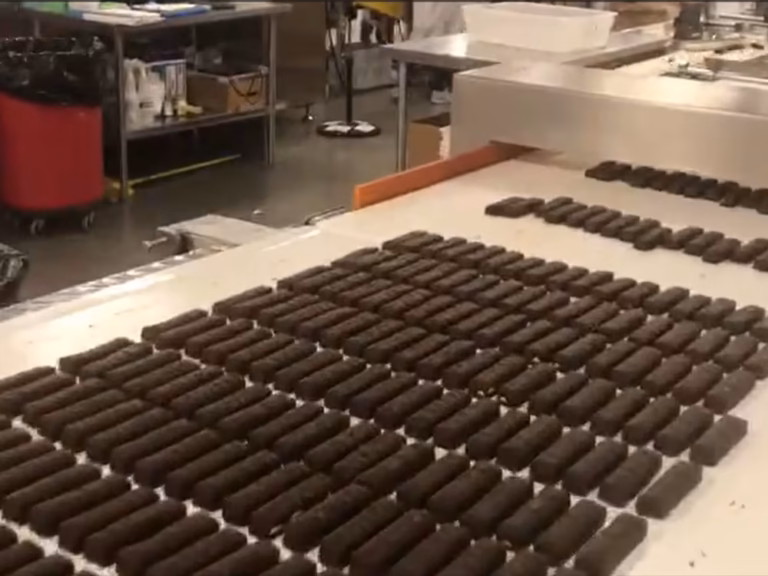

Production Process
Our fully automatic production line ensures consistent quality, high efficiency, and stable operation for all types of snack bars. From raw material mixing to final packaging, every step is precisely controlled to meet industrial production standards.
Features and Benefits
Food-Grade SUS304 Stainless Steel Construction
All product-contact components are made of food-grade SUS304 stainless steel, ensuring full compliance with global food safety standards, easy daily cleaning, and long-term corrosion resistance.
High-Precision Forming & Cutting System
Heavy-duty pressing rollers and servo-driven guillotine cutters deliver uniform bar thickness, exact weight control, and clean cutting, eliminating product waste and ensuring consistent quality across every batch.
Intelligent PLC Control System
Centralized PLC control with a user-friendly touchscreen interface allows for one-stop adjustment of speed, temperature, and cutting settings, minimizing manual errors and simplifying daily operation.
Modular & Versatile Design
Fully modular configuration supports easy integration of optional enrobing, sprinkling, and packaging units, enabling seamless switching between cereal bars, granola bars, nut bars, and Shaqima on a single line.
High-Efficiency Continuous Production
Continuous conveyor design with high-speed cutting achieves up to 20,000 bars per hour, drastically increasing hourly throughput while reducing labor costs and scaling production capacity.
Low-Noise & Stable Operation
Equipped with high-performance variable-frequency motors, the line operates at ultra-low noise levels, making it ideal for small workshops, food factories, and noise-sensitive production environments.
How it works
At the heart of every efficient cereal bar production line is a set of advanced technical features designed to streamline the manufacturing process. Modern lines are constructed entirely from food-grade stainless steel to ensure the highest levels of food safety. This material choice prevents contamination and allows for rigorous daily cleaning routines without the risk of rust or degradation. Operating this heavy machinery requires precision, which is why these systems rely on advanced PLC control cabinets. These programmable logic controllers act as the brain of the operation, allowing human operators to monitor and adjust speeds, temperatures, and mechanical movements from a single touchscreen interface.
Another critical feature is the sophisticated ingredient feeding and mixing system. This setup ensures that dry cereals, nuts, and sticky syrups are combined evenly without crushing the core ingredients. Once the mixture is perfectly blended, the forming and compressing mechanisms take over. These heavy-duty rollers apply the exact amount of pressure needed to bind the ingredients together. If the pressure is too light, the cereal bar will fall apart; if it is too heavy, the bar will become unpleasantly hard. Following the compressing stage, robust cooling systems rapidly lower the temperature of the continuous product slab to prepare it for final sizing.
What is a Cereal Bar Production Line?
The Importance of Cereal Bar Production Lines in Snack Manufacturing
Comparing Traditional and Modern Cereal Bar Production Lines
Key Components of a Cereal Bar Production Line
1. Feeding System
2. Compressing & Leveling Rollers
3. Primary Cooling Section
4. Longitudinal Slitting System
5. Transverse Cutting Mechanism
6. Final Cooling & Separation
Advantages of Cereal Bar Production Lines
- High Precision & Consistency – Uniform weight, size and shape across all bars.
- High Throughput – Continuous processing greatly increases daily production capacity.
- Wide Material Compatibility – Handles cereals, oats, nuts, syrups, caramel and protein mixtures.
- Stable Temperature Control – Integrated cooling ensures reliable setting and cutting.
- Improved Hygiene & Food Safety – Food-grade stainless steel construction with minimal manual contact.
- Lower Labor Costs – Reduces manual labor for mixing, spreading and cutting.
- Flexible & Modular Design – Adaptable for different recipes; optional chocolate enrobing available.
The Cereal Bar Production Process
Producing high-quality cereal bars requires a precise combination of ingredient handling, shaping, and cooling. The process is divided into several distinct stages to ensure consistency, texture, and efficiency in every bar produced.
The journey from raw ingredients to a finished cereal bar involves a seamless, continuous five-step breakdown. The process begins with the feeding stage. Here, the properly mixed ingredients are pumped or poured from the blending containers directly into the primary hopper. This feeding mechanism must deliver a consistent, even flow of the sticky cereal mass onto the conveyor belt to prevent any gaps, air pockets, or inconsistencies in the final product.
Next comes the forming stage. As the raw cereal mass travels along the belt, it passes through a series of heavy rollers. These rollers gently but firmly press the mixture into a uniform slab of specific thickness. This continuous pressing ensures the ingredients bind together correctly without losing their desired chewy or crunchy texture. Precise calibration during this step ensures that each resulting bar meets the manufacturer's exact weight and density requirements.

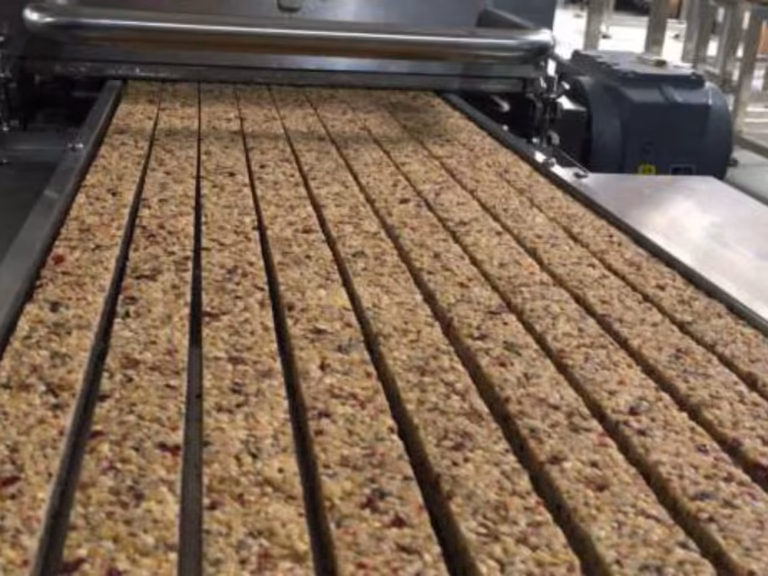

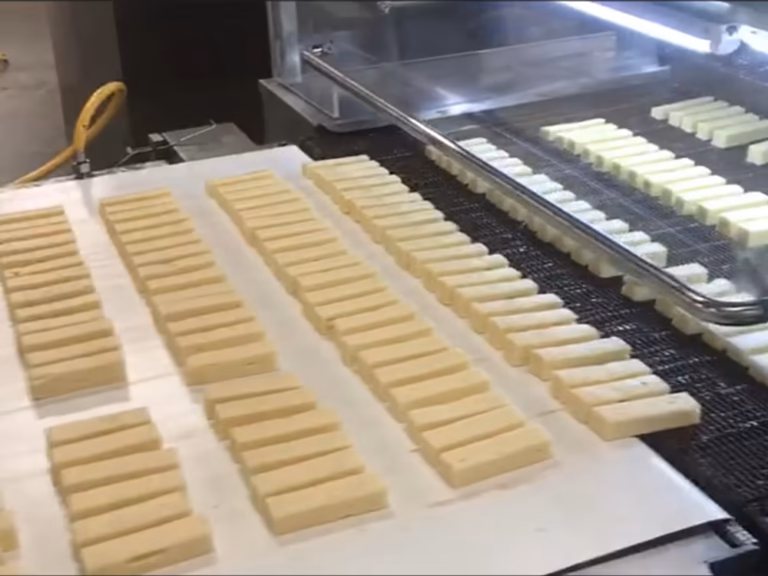

Once the slab is fully formed, it enters the cooling phase. The conveyor belt carries the continuous sheet of cereal through an extended cooling tunnel, solidifying the binding syrups. After cooling, the hardened slab enters the cutting phase, where advanced slitting systems slice the wide sheet into narrow strips and then chop those strips into individual, perfectly sized bars. Finally, the bars move directly into the packaging stage, where high-speed wrappers seal them in protective film, ready for boxing and worldwide distribution.
Our Certifications
We hold international authoritative certifications to ensure our equipment meets global market access standards and production quality requirements.
Every piece of equipment undergoes strict inspection throughout production, from material selection to assembly and finished machine testing, ensuring stable performance and long service life.
Our experienced engineering team also provides professional on-site guidance, process optimization and targeted technical support for your bean-to-bar production line, helping you achieve efficient and reliable operation.
Customization & Comprehensive After-Sales Service
Customization Service
We offer one-to-one customized design for your bean-to-bar production line:
1. Adjust equipment capacity and dimensions based on your workshop layout;
2. Optimize production process to match your product (chocolate mass, cocoa butter, cocoa powder);
3. Customize auxiliary equipment and line integration for seamless production;
Global After-Sales Support
We have a dedicated after-sales team with 5 professional after-sales engineers and 15 foreign trade specialists, providing comprehensive after-sales service for global customers:
1. Overseas on-site installation and commissioning;
2. Professional operation and maintenance training for your staff;
3. Timely supply of spare parts and technical consultation;
4. Long-term after-sales follow-up and production optimization guidance;
Related Products
Candy Bar Production Line
TYJ Chocolate Enrobing Machine with Cooling Tunnel
Chocolate Cluster Machine
Chocolate Depositor
FAQs
Q1. What is the average production capacity of a standard cereal bar line?
Production capacity depends on model and configuration.
Yucho’s cereal bar production lines, with conveyor widths from 200 mm to 800 mm, can produce 5,000–20,000 bars per hour.
Actual output also varies with bar size, recipe characteristics, and operating speed.
Q2. Can one production line handle both baked and cold-pressed bars?
Yes, modern cereal bar lines offer high versatility.
Yucho’s equipment can produce both baked and cold-pressed bars by adjusting parameters including temperature, forming pressure, and cutting settings.
This allows you to manufacture cereal bars, protein bars, Shaqima, and other snacks on the same line.
Q3. How long does it take to switch the equipment between different recipes?
Recipe changeover typically takes 30 minutes to 2 hours, depending on product complexity.
This includes cleaning, parameter adjustment, and cutting calibration.
Yucho’s modular, easy-to-clean design helps minimize downtime during product switches.
Q4. What are the most common causes of product waste during the cutting stage?
- Incorrect cutting calibration or blade alignment
- Uneven mixing or inconsistent forming of the material
- Worn or dull blades reducing cutting precision
Q5. Does the equipment require specialized technicians for daily operation?
No. Yucho’s cereal bar lines feature a user-friendly design for simple daily operation.
While professional technicians are recommended for installation and maintenance, standard staff can easily operate the line after basic training, thanks to the intuitive control system and high level of automation.
Q6. How do environmental factors like humidity affect the production process?
- High humidity may cause sugar and cereal to absorb moisture, leading to stickiness and clumping.
- Excess moisture softens the bar structure and reduces cutting precision.
- Increased moisture content can also shorten product shelf life.
