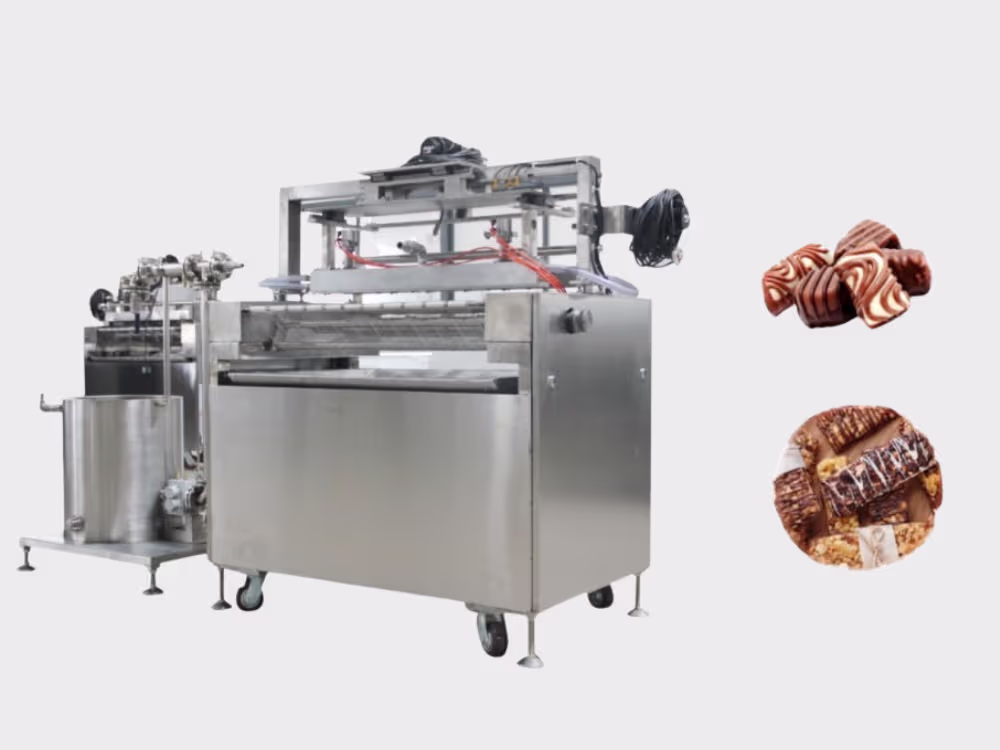

High-Precision Chocolate Decoration Machine for Confectionery
Providing Chocolate Decoration Machine Solutions
Our Chocolate Decoration Machine ensures precision and versatility, creating intricate, high-quality patterns on cakes, biscuits, and chocolates. With over 30 years of expertise, we deliver tailored solutions for your confectionery decoration needs.
Trusted Chinese Chocolate Machine Manufacturer
With over 35 years of expertise, YUCHO Machinery is a trusted leader in chocolate machinery. Our Chocolate Decoration Machine delivers precision, hygiene, and efficiency, crafted with food-grade stainless steel and advanced automation. Certified to ISO 9001 and CE, we provide customized solutions and end-to-end services, from design to support, ensuring seamless production for clients in over 100 countries.
Product Details
Successful Decoration of Cakes, Biscuits, and Chocolates with Intricate Patterns
The High-Precision Chocolate Decoration Machine specializes in making beautiful designs on a variety of confectionery products, including cakes, biscuits, and chocolate. This machine has an adjustable mesh belt width from 400mm to 1200mm, allowing for versatile customization and ensuring precise, consistent decoration.
Many YUCHO High-Precision Chocolate Decoration Machines are used worldwide and are proving highly successful in confectionery decoration. The machine is built with highly efficient, automated food-grade stainless steel, which ensures superior hygiene during the production process. The modular design allows for simple maintenance and cleaning, and the machine’s high quality is maintained by the precise control system. A wide array of production customization is available.
Models & Technical Parameters
| Modle | Total Power(kW) | Motor Power(kW) | Heating Power(kW) | Mesh belt width (mm) | Mesh belt speed(m/min) | Outer Dimension(mm) |
|---|---|---|---|---|---|---|
| SHJ400 | 9.74 | 0.74 | 9 | 400 | 3-5 | 1000x930x1870 |
| SHJ600 | 9.74 | 0.74 | 9 | 600 | 3-5 | 1000x1130x1870 |
| SHJ800 | 9.74 | 0.74 | 9 | 800 | 3-5 | 1000x1330x1870 |
| SHJ900 | 9.74 | 0.74 | 9 | 900 | 3-5 | 1000x1430x1870 |
| SHJ1000 | 9.74 | 0.74 | 9 | 1000 | 3-5 | 1000x1530x1870 |
| SHJ1200 | 9.74 | 0.74 | 9 | 1200 | 3-5 | 1000x1730x1870 |
Area of Applications
- Chocolate Surface Decoration (Pattern design for chocolate bars, tablets, plaques, and individual chocolate pieces)
- Bakery Product Decoration (Chocolate pattern application for biscuits, cookies, pastries, and macarons)
- Cake & Dessert Decoration (Surface chocolate art for round/square cakes and premium desserts)
- Continuous Production Line Decoration (On-line chocolate patterning for automated food manufacturing lines)
- Custom Confectionery Decoration (Bespoke chocolate pattern design for premium gift confectionery)
- Small-Batch & Mass Production (Flexible decoration for both artisanal small batches and large-scale industrial output)
Core Features & Benefits
Multiple Mesh Belt Width Options
Available in 400mm, 600mm, 800mm, 1000mm, and 1200mm widths, this machine offers exceptional flexibility to accommodate various product sizes and production line configurations.
Versatile Pattern Compatibility
Capable of creating a wide range of chocolate decoration patterns, from simple lines and text to intricate multi-color designs, it caters to both large-scale production and custom artistic needs.
Adjustable Conveying Speed
The mesh belt speed is adjustable between 3–5 m/min, providing precise control over the decoration process to suit different product types and production requirements.
Food-Grade Hygienic Design
All components in contact with products are made from food-grade materials, ensuring compliance with strict food safety standards. The design also allows for easy cleaning, ideal for chocolate and bakery production.
Stable & Consistent Decoration
Ensures uniform and repeatable chocolate patterns on every product, eliminating manual inconsistencies and delivering high-quality surface finishes at scale.
Easy Integration & Operation
Engineered for seamless integration with existing conveyor systems or automated production lines, the machine features intuitive controls that reduce operator training time and simplify daily operations.
How it works
What is a Chocolate Decoration Machine?
Key Components of a Chocolate Decoration Machine
-
Nozzles & Applicators These are the precision components that directly dispense chocolate. Available in various shapes and sizes, they enable a wide range of decorative patterns, including fine lines, multiple parallel strips, and intricate cross-hatch designs.
-
Conveyor System The conveyor transports products steadily through the decorating station at a precisely controlled speed. Its movement is fully synchronized with nozzle motion to ensure accurate positioning and consistent geometric patterns.
-
Temperature Control System Chocolate requires strict temperature management to maintain ideal flow and gloss. The integrated temperature control system keeps chocolate at an optimal working viscosity—preventing clogging from cooling or loss of temper from overheating.
-
Control Panel Equipped with an intuitive digital interface, the control panel allows operators to easily set and adjust decorating parameters. Patterns such as zigzags, double loops, and custom designs can be switched quickly with simple operation.
-
Cleaning System Given chocolate’s tendency to solidify at room temperature, efficient cleaning is essential. Most models feature removable nozzle assemblies and automatic flushing functions to minimize blockages and simplify maintenance between production batches.
Operating Procedures for This Machine
Operating a chocolate decoration machine demands a seamless integration of mechanical precision and temperature control. The process is carefully divided into several synchronized steps to ensure flawless and consistent decoration.
Once the chocolate is in the system, the heating and melting phase maintains its optimal consistency. The machine utilizes a specialized water-jacketed heating system around the hopper and the internal piping. This regulates the internal heat, ensuring the chocolate remains perfectly fluid without burning or seizing. Precise temperature control is vital because the chocolate must flow smoothly through the narrow nozzles to form clean, unbroken lines.
The third and most critical step is the pattern application. A motorized pump forces the liquid chocolate from the hopper through the dispensing nozzles. These nozzles are mounted on a mechanized arm that moves in specific, programmable motions—such as side-to-side for zig-zags or circular motions for loops. The speed of the pump and the movement of the arm dictate the thickness and style of the chocolate decoration.
Following the application, the conveying and shaping step takes over. The conveyor belt continuously moves the products under the dispensing heads at a tightly controlled speed. The synchronization between the belt speed and the nozzle movement is what stretches or compresses the applied chocolate into the desired shape, guaranteeing that the pattern lands perfectly on the center of each item.
Finally, the products enter the cooling and setting phase. The conveyor transports the freshly decorated items through a cooling tunnel. Chilled air rapidly lowers the temperature of the chocolate, causing it to solidify quickly and adhere firmly to the product. This rapid setting prevents the patterns from smudging or spreading, resulting in a crisp, professional finish ready for immediate packaging.
Our Certifications
We hold international authoritative certifications to ensure our equipment meets global market access standards and production quality requirements.
Every piece of equipment undergoes strict inspection throughout production, from material selection to assembly and finished machine testing, ensuring stable performance and long service life.
Our experienced engineering team also provides professional on-site guidance, process optimization and targeted technical support for your bean-to-bar production line, helping you achieve efficient and reliable operation.
Customization & Comprehensive After-Sales Service
Customization Service
We offer one-to-one customized design for your bean-to-bar production line:
1. Adjust equipment capacity and dimensions based on your workshop layout;
2. Optimize production process to match your product (chocolate mass, cocoa butter, cocoa powder);
3. Customize auxiliary equipment and line integration for seamless production;
Global After-Sales Support
We have a dedicated after-sales team with 5 professional after-sales engineers and 15 foreign trade specialists, providing comprehensive after-sales service for global customers:
1. Overseas on-site installation and commissioning;
2. Professional operation and maintenance training for your staff;
3. Timely supply of spare parts and technical consultation;
4. Long-term after-sales follow-up and production optimization guidance;
Related Products
Chocolate Depositor
Chocolate Moulding Line
TYJ Chocolate Enrobing Machine with Cooling Tunnel
FAQs
1. What types of chocolate can be used in a decoration machine?
Chocolate decoration machines are designed to handle a wide range of chocolate types, including dark, milk, and white chocolate. They can also work with flavored or colored chocolate, provided the chocolate is tempered and maintains the correct viscosity for smooth flow through the nozzles.
2. Can these machines apply patterns to non-chocolate items like cookies or cakes?
Yes, chocolate decoration machines are versatile and can apply patterns to various confectionery items, including cookies, cakes, pastries, and biscuits. The adjustable mesh belt width and precise nozzles make them suitable for decorating a variety of surfaces with intricate designs.
3. How difficult is it to clean a decoration machine during a flavor change?
Cleaning a chocolate decoration machine is straightforward due to its modular design and food-grade materials. Many models feature removable nozzle assemblies and automatic flushing systems, which simplify the cleaning process and ensure hygiene during flavor or color changes.
4. Does the machine require a separate tempering unit to function correctly?
Yes, a separate tempering unit is typically required to ensure the chocolate maintains the correct crystalline structure and viscosity before being fed into the decoration machine. Proper tempering is essential for achieving glossy, high-quality decorations.
5. What is the average production speed of an industrial chocolate decorator?
The production speed of an industrial chocolate decoration machine varies depending on the model and configuration. For example, YUCHO machines offer adjustable mesh belt speeds ranging from 3 to 5 meters per minute, accommodating different production requirements.
6. Can a decoration machine handle inclusions like small nut pieces or sprinkles?
Most chocolate decoration machines are designed for smooth chocolate flow and may not handle inclusions like nuts or sprinkles directly. However, some advanced models can be customized or integrated with additional systems to apply inclusions after the chocolate decoration process.
