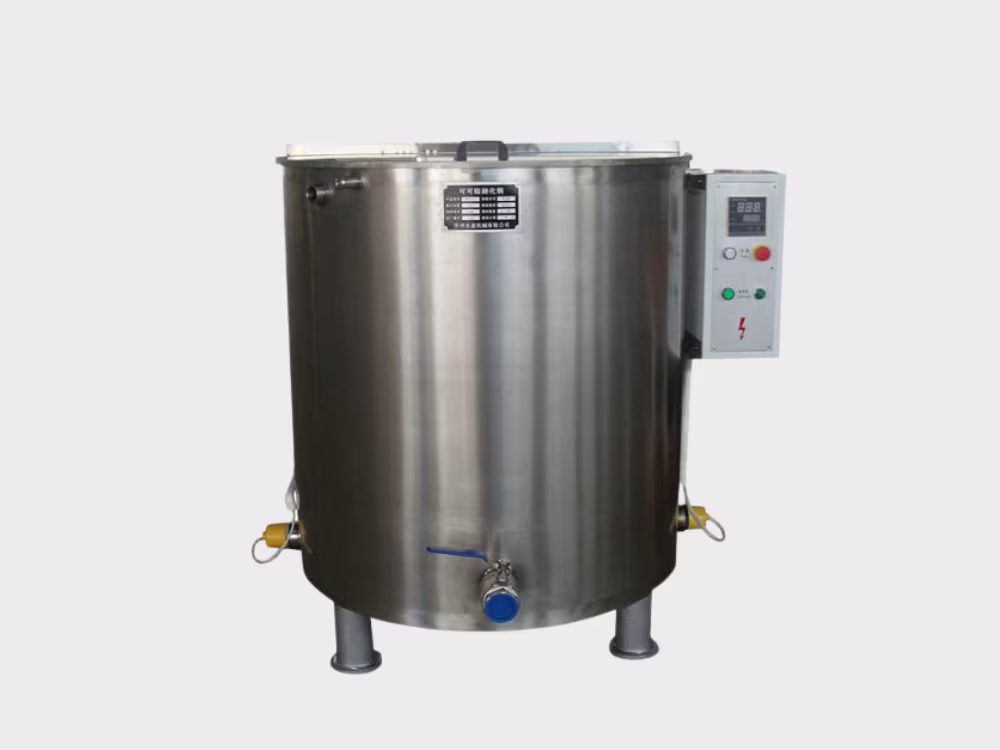

RYG Series Fat Melter – Your Ideal Chocolate Production Partner
Provide You with Fat Melter Production Solutions
Our RYG Series Fat Melter delivers precise, efficient heating, effortlessly melting cocoa butter to meet the rigorous demands of chocolate production. Backed by over 35 years of industry expertise, we deliver tailored equipment solutions to guarantee your confectionery success.
Trustworthy China Chocolate Machine Manufacturer
With over 35 years of expertise, Shanghai Yucho Industrial Co., Ltd. is a trusted leader in advanced chocolate equipment. Operating from our 10,000-square-meter factory, we design the ultimate Fat Melter to enhance your production efficiency. Our highly reliable Fat-melting machine and versatile Butter-melting machine deliver exceptional hygiene and performance under strict CE and ISO standards. Supported by 15 dedicated trade specialists and 5 expert engineers, we provide seamless end-to-end solutions for clients in over 100 countries.
Product Details
Efficient Melting of Cocoa in a Wide Variety of Scales and Formulations
RYG series fat melters are characterized by efficient heating and chocolate-processing capabilities. Based on the required production capacity, they are divided into 240L and 1700L. Different methods are used to melt chocolate ingredients, using jacket water or hot-water pipes in the equipment.
These fat melters are widely used in chocolate production lines, confectionery manufacturing plants, and specialty cocoa butter processing operations, offering versatile solutions across the food industry.
Numerous RYG series fat melters from Yucho are in operation worldwide for processing chocolate ingredients across a wide range of scales and formulations. Yucho’s 35 years ensure that both cocoa butter and liquor are consistently and accurately melted during the process for optimal results. Accurate heating of 6kW to 24kW is particularly important to avoid production strain from underheating. A wide range of temperatures, like 40-65°C jacket water and 55-80°C hot pipes, is also available to handle the output of 700L/h perfectly.
Models & Key Specifications
| Model | Heating System & Temperature Range | Heating Power | Motor Power | Capacity / Output | Outer Dimension (mm) |
|---|---|---|---|---|---|
| RYG-2 Fat Melter | Jacketed water heating 40–65°C |
6kW | – | 240L nominal capacity | 1165 × 830 × 1000 |
| RYG-3 Fat Melter | Jacketed water heating 40–65°C |
9kW | – | 120L × 3 (360L total) | 1660 × 830 × 1000 |
| RYG-4 Fat Melter | Jacketed water heating 40–65°C |
12kW | – | 250L × 4 (1000L total) | 2170 × 1000 × 1000 |
| RYG500 Fat Melter | Dual system: jacketed water (40–65°C) + hot water pipes (55–80°C) | 15kW | 1.5kW | 500L nominal capacity | 1700 × 1450 × 1650 |
| RYG1000 Fat Melter | Dual system: jacketed water (40–65°C) + hot water pipes (55–80°C) | 18kW | – | 700L/h output | 3200 × 1750 × 1680 |
| RYG2000 Fat Melter | Dual system: jacketed water (40–65°C) + hot water pipes (55–80°C) | 24kW | – | 1400–1700L nominal capacity | 3350 × 1800 × 1820 |
Features and Benefits
Precision Flavor Preservation
Protect the natural integrity of your fats. Our advanced dual temperature regulation system operates precisely within 40–80°C (40–65°C jacketed water / 55–80°C hot water pipes across models). This ensures an even, stable melt that eliminates overheating or burning, safeguarding the signature flavor of your chocolate products.
Scalable Capacity Options
Grow your production without bottlenecks. Choose from nominal capacities ranging from 240L up to 1700L, with output rates reaching 700L/h (RYG1000 model). This flexibility ensures you have the exact volume to meet demand—whether for small-batch artisanal production or large-scale industrial manufacturing.
Rapid Heating Performance
Minimize downtime and accelerate your workflow. Equipped with high-power heating systems (6kW to 24kW), the RYG Series delivers optimized heat distribution for rapid, uniform melting of cocoa liquor and cocoa butter substitutes—boosting overall production line efficiency by up to 30%.
Uncompromising Food Safety
Maintain the highest hygiene standards with ease. All product-contact components are crafted from food-grade SUS304 stainless steel, with a seamless interior design for fast cleaning and sanitization. Fully compliant with global food safety regulations (FDA/CE).
Seamless Line Integration
Adapt to any production environment. As a versatile auxiliary machine for chocolate production, the RYG Series integrates flawlessly with existing tempering, moulding, and enrobing equipment—or operates independently to fit your unique workflow.
Space-Efficient Engineering
Maximize your valuable floor space. With compact outer dimensions (1165×830×1000mm to 3350×1800×1820mm across models), it fits seamlessly into tight workshops or expansive factories. Its robust construction ensures long-term reliability with minimal maintenance.
How it works
Dual Heating Systems in RYG Series Fat Melters
🧊 Jacketed Water Heating (40–65°C)
🔥 Hot Water Pipe Heating (55–80°C)
Choosing the Right System for Your Operation
- Jacketed water heating → Small-batch/artisanal production, sensitive ingredients (pure cocoa liquor), flavor-first priorities.
- Hot water pipe heating → Large-scale industrial manufacturing, high-viscosity fats/substitutes, maximum output requirements.
Difference Between Traditional Melting Methods and the RYG Series
Traditional melting methods often rely on direct heating, which can lead to uneven temperature distribution and material scorching. The RYG Series Fat Melter offers several advantages:
- Double-Jacketed Heating: Provides uniform heat distribution without direct contact.
- Energy Efficiency: Reduces energy consumption while maintaining high performance.
- Scalability: Handles both small and large production volumes with ease.
These features make the RYG Series a superior choice for manufacturers seeking reliable and efficient melting solutions.
Advantages of the RYG Series for Confectionery Manufacturers
The RYG Series Fat Melters offer numerous benefits, including:
- Consistent and Precise Melting: Ensures high-quality results without scorching or degradation.
- Scalable Capacity Options: Accommodates both small and large production needs.
- Versatility: Handles a wide range of fat-based materials, including cocoa butter and specialty vegetable fats.
- Energy Efficiency: Reduces operational costs with optimized heating systems.
- Durable Construction: Built for long-term use in demanding environments.
These advantages make the RYG Series a reliable and efficient choice for confectionery manufacturers worldwide.
Types of RYG Series Fat Melters
1. 240L RYG Series Fat Melter
- Capacity: Processes up to 240 liters of material.
- Applications: Ideal for boutique chocolate production and small-scale operations.
- Features: Compact design with quick heat-up times.
2. 1700L RYG Series Fat Melter
- Capacity: Processes up to 1700 liters of material.
- Applications: Designed for large-scale industrial operations.
- Features: High-power heating elements for continuous, high-volume melting.
Each model is tailored to specific production requirements, ensuring optimal performance and efficiency.
Why Choose the RYG Series Fat Melters?
The RYG Series Fat Melters are the ultimate solution for efficient and precise fat melting in the confectionery industry. With their advanced features, scalable capacity options, and energy-efficient operation, they ensure consistent product quality and seamless integration into production lines.
Whether you’re a small artisanal chocolatier or a large-scale manufacturer, the RYG Series is designed to meet your needs and exceed your expectations.
For more information about the RYG Series Fat Melters or to find the right model for your production requirements, please contact us today.
5 Core Steps of Industrial Fat Melting
Solid blocks of cocoa butter, cocoa butter substitutes, or pure cocoa liquor are fed (manually or automatically) into the RYG Series Fat Melter’s dedicated receiving hopper to initiate the thermal transformation process. This streamlined feeding design ensures a consistent flow of raw material, eliminating bottlenecks at the start of your production line.
Once fed, materials enter a seamless, food-grade SUS304 stainless steel chamber—crafted for maximum hygiene and durability. The RYG Series features adjustable high-power heating systems (6kW to 24kW), an innovative design that optimizes energy consumption while slashing production downtime. This robust construction guarantees sanitary operations, simplifies daily cleaning protocols, and supports uninterrupted, sustainable manufacturing workflows.
Targeted, circulating heat gently melts dense solid materials into a smooth, uniform liquid—all while maintaining exact temperature control (40–80°C, tailored to your material type). This precision is non-negotiable: it preserves the delicate natural flavor of premium cocoa fats and ensures consistent quality across every batch, avoiding overheating or burning that ruins texture and taste.
Fully melted liquid fat is transferred seamlessly out of the machine at a steady flow rate—designed to integrate perfectly with your downstream tempering, moulding, and enrobing equipment. This creates a fully automated, precision-linked production sequence, eliminating manual handling and ensuring your liquid cocoa base moves efficiently to the next stage of chocolate manufacturing.
In the final stage, the melted liquid is either held at an optimal stable temperature (for immediate use) or directed through a controlled cooling process. This cooling step solidifies the liquid fat into the exact texture and structure needed for your finished gourmet chocolate products—guaranteeing consistent shape, snap, and quality in every piece.
Our Certifications
We hold international authoritative certifications to ensure our equipment meets global market access standards and production quality requirements.
Every piece of equipment undergoes strict inspection throughout production, from material selection to assembly and finished machine testing, ensuring stable performance and long service life.
Our experienced engineering team also provides professional on-site guidance, process optimization and targeted technical support for your bean-to-bar production line, helping you achieve efficient and reliable operation.
Customization & Comprehensive After-Sales Service
Customization Service
We offer one-to-one customized design for your bean-to-bar production line:
1. Adjust equipment capacity and dimensions based on your workshop layout;
2. Optimize production process to match your product (chocolate mass, cocoa butter, cocoa powder);
3. Customize auxiliary equipment and line integration for seamless production;
Global After-Sales Support
We have a dedicated after-sales team with 5 professional after-sales engineers and 15 foreign trade specialists, providing comprehensive after-sales service for global customers:
1. Overseas on-site installation and commissioning;
2. Professional operation and maintenance training for your staff;
3. Timely supply of spare parts and technical consultation;
4. Long-term after-sales follow-up and production optimization guidance;
Related Products
Cocoa Butter Press Machine
Chocolate Melting Tank
SJB Series Chocolate Delivery Pump
TTJ40 Chocolate Tempering Machine
Frequently Asked Questions
Q1. How long does a typical melting cycle take for a standard block of fat?
The melting cycle for a standard block of cocoa butter or similar fat typically takes 1 to 2 hours, depending on the material’s initial temperature, the model (240L or 1700L), and the desired output temperature. The RYG Series’ advanced heating system ensures efficient and uniform melting within this timeframe.
Q2. Can the RYG Series handle different types of fats simultaneously?
Yes, the RYG Series Fat Melters are designed to handle multiple types of fats, such as cocoa butter, chocolate liquor, and specialty vegetable fats. However, to avoid cross-contamination, it is recommended to process fats with similar melting points together or clean the system thoroughly between batches.
Q3. What are the power requirements for an industrial-sized fat melter?
The power requirements for the RYG Series vary by model:
- 240L Model: Requires approximately 6kW of power.
- 1700L Model: Requires up to 24kW of power.
- Both models operate on standard industrial power supplies, typically 380V, 50/60Hz, three-phase. Ensure your facility meets these specifications before installation.
Q4. How do you clean the melting grid after processing high-viscosity materials?
The melting grid can be cleaned by:
- Flushing with Hot Water: Use water at a temperature of 60–80°C to dissolve residual fats.
- Food-Grade Cleaning Agents: Apply approved cleaning solutions to remove stubborn residues.
- Manual Scrubbing: For thorough cleaning, disassemble the grid and scrub with non-abrasive tools.
- Regular cleaning ensures optimal performance and prevents material buildup.
Q5. Is the RYG Series compatible with existing automated production lines?
Yes, the RYG Series is fully compatible with most automated production lines. It features standardized output connections and can integrate seamlessly with tempering machines, enrobing systems, and other downstream equipment. Additionally, its temperature control systems can be synchronized with factory automation protocols for streamlined operations.
Q6. What safety certifications do these machines typically carry?
The RYG Series Fat Melters are built to meet international safety and quality standards, including:
- CE Certification: Ensures compliance with European safety regulations.
- ISO 9001: Guarantees quality management in manufacturing.
- Food-Grade Compliance: Constructed with FDA-approved materials for safe food processing.
- These certifications ensure the machines are safe, reliable, and suitable for use in food production environments.
